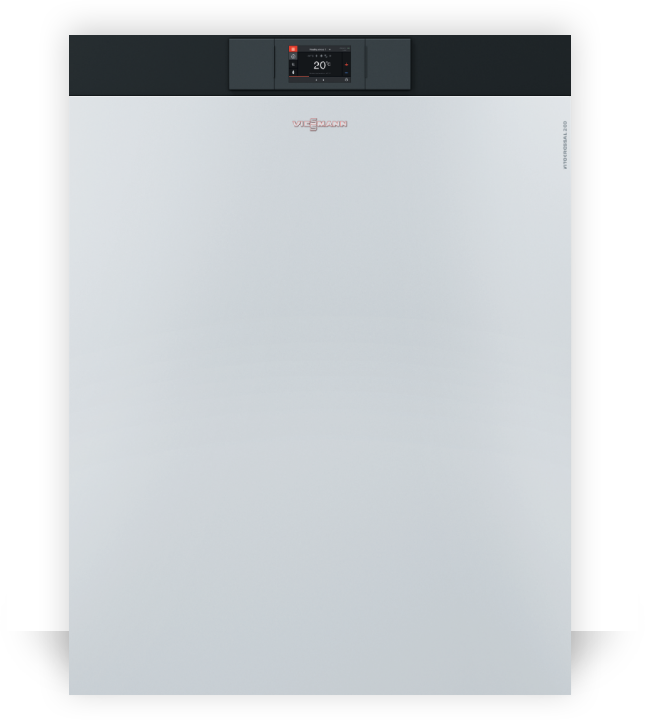

Vitocrossal 200
Vitocrossal 200
High performance stainless steel gas condensing boiler
A universal solution for new build and modernisation projects, the Vitocrossal 200 is a range of gas condensing boilers with a rated heating outputs of 87 to 1000 kW. For the reliable supply of heat in large residential buildings as well as in commercial operations.
- LargeResidential
- LargeCommercial
- Powered byGas and LPG
- Up to1000 kW
- Text & graphicDisplay
- ExceptionalReliability
- Low operationalCost
- Made inGermany
- Stainless steel gas condensing boilers , 87 to 1000 kW (up to 8000 kW as a cascade)
- NOx <24mg/kWh (2 Credit Points) in line with ‘BREEAM UK New Construction 2018 - "Technical Manual" assessment criteria
- Easy-to-use control unit, even for multi boiler systems
- New MatriX disc burner enables reduced dimensions - Vitocrossal 200 CRU
- Smooth stainless steel surfaces create self-cleaning effect
- All hydraulic connections can be made from above
- Easy-to-use Vitotronic control unit with plain text and graphic display
- Either open flue or room sealed operation
Key Benefits
Gas condensing boiler Vitocrossal 200 Type CM2C
The Vitocrossal 200 (type CM2C) gas condensing boiler with an output of 87 to 311 kW sets benchmarks in maintenance and service. The proven MatriX radiant burners (up to 142 kW) and MatriX cylinder burners (from 186 kW) enable operation with gas types E, L, LL, and from 186 kW with LPG, as well as modulation down to 20 percent.
The Vitocrossal 200 also impresses with its extremely convenient servicing. The gas spring enables the front part of the boiler cover to be easily raised. The side panels can be pushed back, allowing unobstructed access to the MatriX burner.
Gas condensing boiler Vitocrossal 200 Type CM2
The Vitocrossal 200 (type CM2) gas condensing boiler with an output of 400 to 620 kW sets benchmarks in maintenance and service. The proven MatriX cylinder burners enable operation with gas type E (natural gas).
Gas condensing boiler Vitocrossal 200 Type CRU
The Vitocrossal 200 (type CRU) gas condensing boiler with an output of 800 to 1000 kW . The proven MatriX disk burner (up to 1000 kW) enable operation with gas types E (natural gas)
Integral cascade function for up to eight units
The Vitocrossal 200 is the ideal boiler for apartment buildings and commercial enterprises. The cascade function integrated in the Vitotronic control unit enables multi boiler systems with up to eight boilers (up to 8000 kW with the Vitocrossal 200 type CRU).
Convenient Vitotronic control unit
The Vitotronic control unit with a large colour touchscreen enables quick commissioning using the assistant function; operation is straightforward as well.
Functionality has been significantly improved. This includes:
- LAN interface for internet connectivity
- Service interface (WLAN) for Vitosoft 300 for commissioning and service
- Assistant function to aid commissioning
- Remote reset via programming unit in boiler control unit
- Energy cockpit shows energy consumption rates and histograms
- Two return connectors for hydraulic connection optimised for condensing technology (optional)
- New design concept for ease of maintenance and service
- Vitogate 300 as an interface for integration into building management systems
MatriX radiant burner for particularly quiet and environmentally friendly operation
MatriX radiant burner for particularly quiet and environmentally friendly operation with a modulating range of 33 to 100%
For single or multi boiler systems
The Vitocrossal 200 is a gas condensing boiler for universal use.
As a single boiler or in multi boiler systems, it is just as suitable for residential complexes and industrial plants as it is for local heating networks and larger public and commercial buildings.
It features the Inox-Crossal heat exchanger with robust MatriX cylinder burner (Disc burner on the CRU). Frugal energy consumption is ensured by the modulation range from 20 to 100 percent.
High efficiency and low NOx levels
The highly effective heat transfer and high condensation rate enable standard seasonal efficiency [to DIN] up to 98% (Hs) [gross cv] / 109% (Hi) [net cv] to be achieved.
NOx <24mg/kWh (2 Credit Points) in line with ‘BREEAM UK New Construction 2018 – Technical Manual’ assessment criteria
Condensing technology at the best price / performance ratio
With the Vitocrossal 200, Viessmann offers high grade condensing technology from 87 to 1000 kW at the best price/performance ratio.
This range also features the Inox-Crossal heat exchanger and MatriX radiant burner or MatriX disc burner in the 200 CRU. The Vitocrossal 200 is suitable for open flue and room sealed operation across its entire output range.
Product Data
Variants
Vitocrossal 200 Type CM2C
Vitocrossal 200 Type CM2
Vitocrossal 200 Type CRU
Vitocrossal 200 Type CM2C
Vitocrossal 200 Type CM2
Vitocrossal 200 Type CRU
Output (kW)
Vitocrossal 200 Type CM2C
87 to 311 kW
Vitocrossal 200 Type CM2
400 to 620 kW
Vitocrossal 200 Type CRU
800 and 1000 kW
Standard seasonal efficiency [to DIN]
Vitocrossal 200 Type CM2C
98 % (Hs) [gross cv]
Vitocrossal 200 Type CM2
98 % (Hs) [gross cv]
Vitocrossal 200 Type CRU
98 % (Hs) [gross cv]
Fuel
Vitocrossal 200 Type CM2C
Natural Gas & LPG from 186kW
Vitocrossal 200 Type CM2
Natural Gas & LPG
Vitocrossal 200 Type CRU
Natural Gas & LPG
Application range
Vitocrossal 200 Type CM2C
Large residential buildings, commerce, municipal offices, new build and modernisation projects
Vitocrossal 200 Type CM2
Large residential buildings, commerce, municipal offices, new build and modernisation projects
Vitocrossal 200 Type CRU
Large residential buildings, commerce, municipal offices, new build and modernisation projects
Operation
Vitocrossal 200 Type CM2C
High performance Vitotronic 300 control unit, can regulate up to eight boilers with modulating boiler water temperature, and systems with one or two heating circuits with optional mixer.
Vitocrossal 200 Type CM2
High performance Vitotronic 300 control unit, can regulate up to eight boilers with modulating boiler water temperature, and systems with one or two heating circuits with optional mixer.
Vitocrossal 200 Type CRU
High performance Vitotronic 300 control unit, can regulate up to eight boilers with modulating boiler water temperature, and systems with one or two heating circuits with optional mixer.
NOx Levels
Vitocrossal 200 Type CM2C
NOx <24mg/kWh (2 Credit Points) in line with ‘BREEAM UK New Construction 2018 – Technical Manual’ assessment criteria
Vitocrossal 200 Type CM2
NOx <24mg/kWh (2 Credit Points) in line with ‘BREEAM UK New Construction 2018 – Technical Manual’ assessment criteria
Vitocrossal 200 Type CRU
NOx <24mg/kWh (2 Credit Points) in line with ‘BREEAM UK New Construction 2018 – Technical Manual’ assessment criteria
Additional features
Vitocrossal 200 Type CM2C
With modulating MatriX cylinder burner
Vitocrossal 200 Type CM2
With modulating MatriX cylinder burner
Vitocrossal 200 Type CRU
With modulating MatriX disc burner
